Quick Details

  • Condition: New
  • Type: Paper Cutting Machine
  • Automatic Grade: Semi-Automatic
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SHIWEI
  • Model Number: ML750
  • Voltage: 380V
  • Power(W): 2.2kw
  • Dimension(L*W*H): 1650*1540*1650mm
  • Weight: 2000kg
  • Certification: CE Certificate
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product name: Manual Die Cutting Machine
  • Name: ML750
  • Function: Flat Press Creasing Die Cutting
  • Application: Paper Industry
  • Model: Program Control Paper Cutting Machine
  • Color: Gray
  • Raw material: Stainless Steel
  • Output paper: High Grade Paper
  • Speed: 28 sheets/min
  • Main Parts: Controller

Packaging & Delivery

Packaging Details Our factory will consistently adopt wooden box and plastic paper for packaging so as to guarantee the safety of our machine. Please feel free to purchase! Thank you!
Delivery Time Within 30 days after receipt of 30% deposit of the order confirm
Product Description



PRODUCT INTRODUCTION


Our die cutting machine is an indispensable piece of post press equipment which is widely used for die cutting, and creasing of adhesive stickers, carrier bags, book covers, packing boxes, greeting cards, desk calendars, corrugated cartons, etc. It can effectively cut the desired material into large numbers of the same shape.



ADVANTAGES


1. Our die cutting machine uses centralized lubrication pump system.

2. It adopts world famous brand electrical components.

3. Strengthened construction ensures smooth operation and long service life.

4. The adoption of active plate frame makes it convenient to install die cutting board and adjust pressure, producing clear and beautiful results.


5. Most of the body of our machine consists of casting iron, which accounts for about eighty percent of the whole machine. In China, we are the only one company who adopts HT250.



FEATURES


1. High strength due to whole body casting with high quality material.

2. Smooth running, high working pressure and low noise with 3-step helical gear mechanism.

3. Single plate electromagnetic clutch is sensitive and reliable.

4. Operational altitude is reasonably arranged, moving-bed opens to its maximum.

5. Electrical system is designed in conformity with IEC standard.

6. Single, continuous operation and opening delay are available, delay range adjustable.

7. Reliable safety system.

8. High precision micro adjustment device.



SPECIFICATION

Inside chase size
750*520mm
Max. die cutting size
750*520mm
Speed
28±2 sheets/min
Max. rule length
≤15m
Motor power
2.2kw
Gross weight of machine
2000kg
Overall machine dimensions
1650*1540*1650mm
Configuration of chase
Acitve
Packing & Delivery

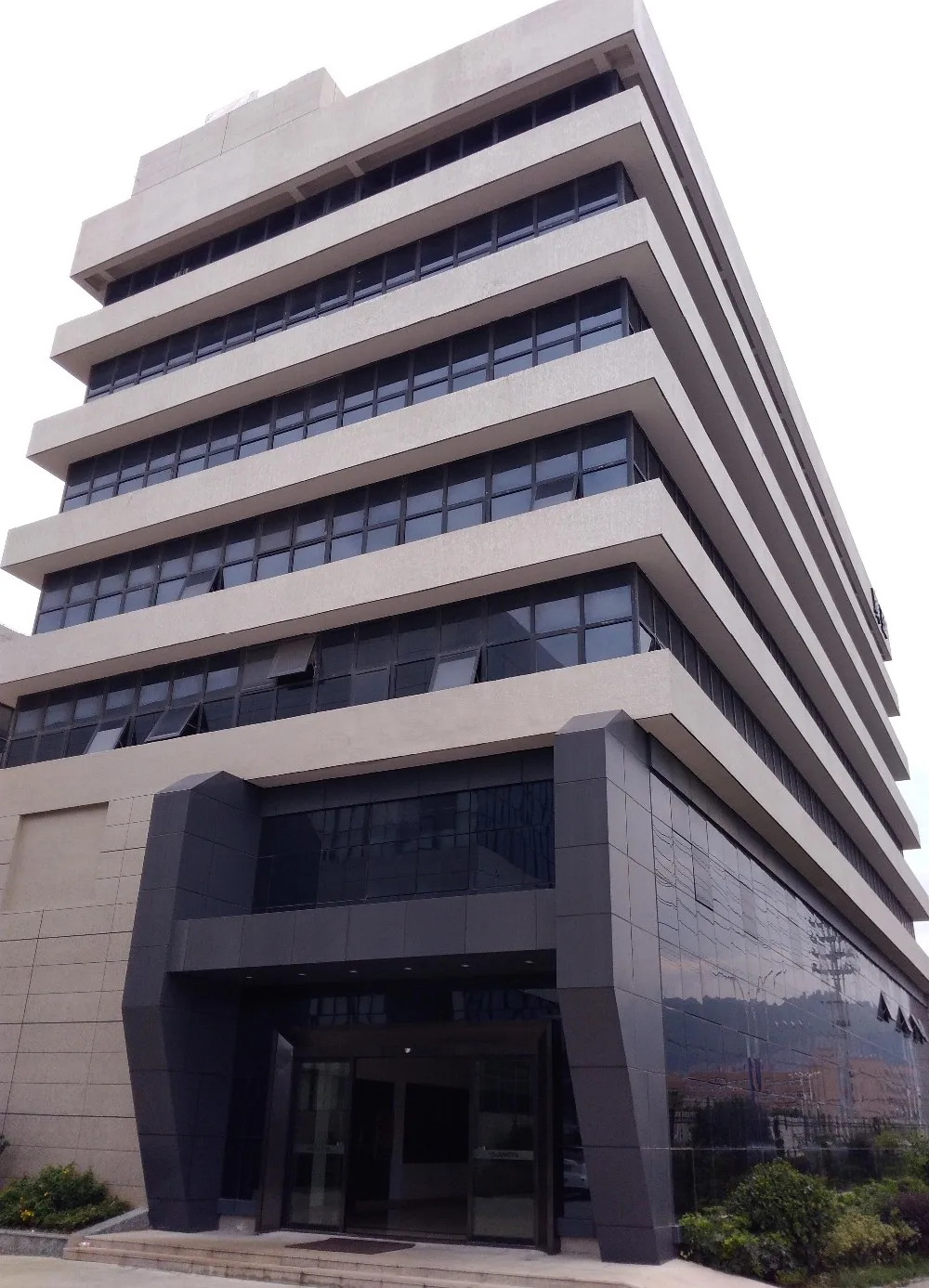

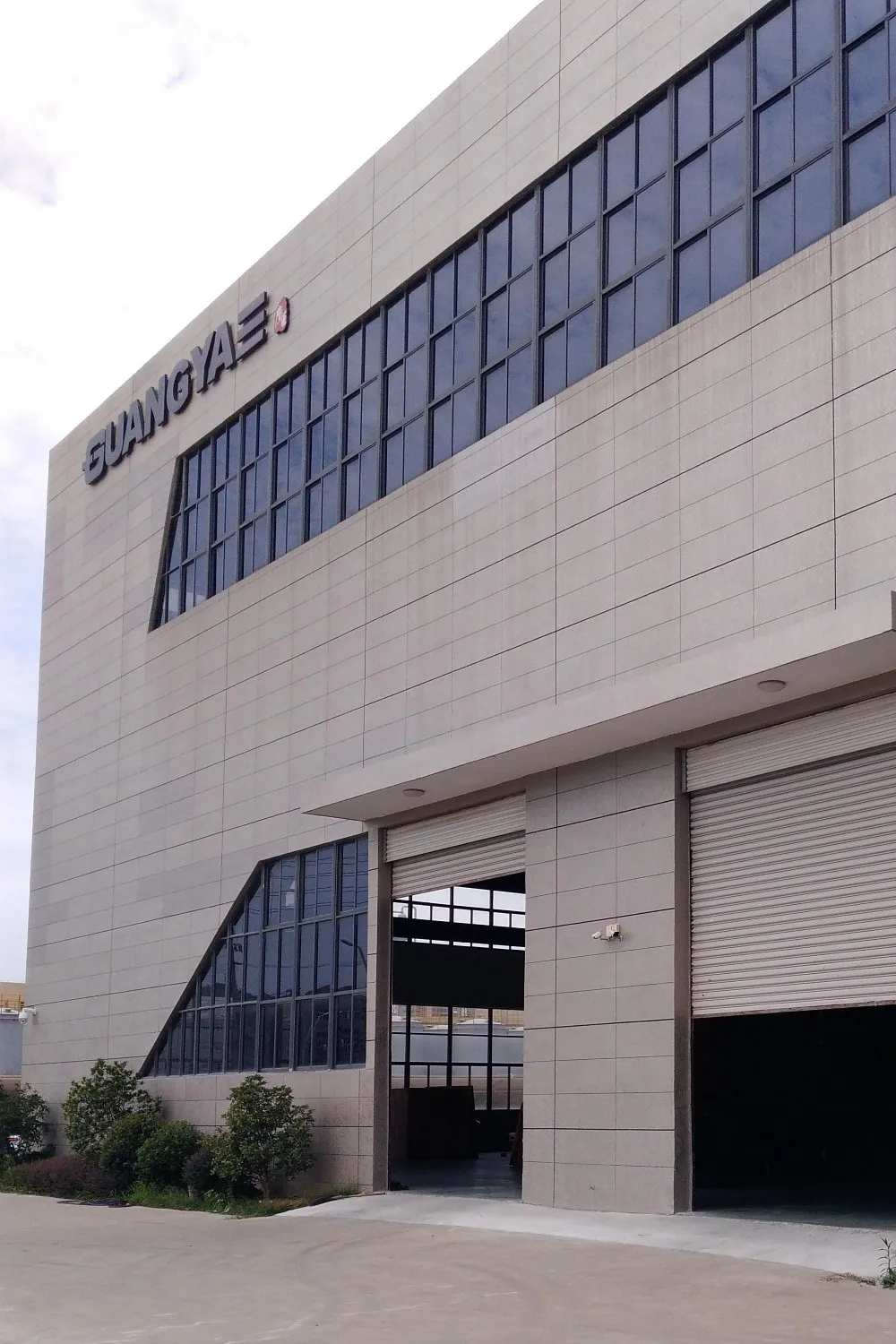

Our Company


TO SUCCEED BY QUALITY


TO DEVELOP BY INNOVATION

Zhejiang GUANGYA Machinery Co.,Ltd is a specialized manufacturer with a long history producing hot foil stamping and die cutting machinerySince its establishment, our company have always been insisting on policy "Assure Success By Quality, Integrity Based", and placed stress on new product development and continual improvement. On designing machine, we adopt high and new technology from home and abroad; on producing, we have accumulated abundant experience over 21 years, and we keep on launching on the market our "SHIWEI" (Lion Power) brand series of hot foil stamping and die cutting machine with high quality.

Our machine is extremely popular in our domestic market and it is already exported to over 70 countries and territories as far as Europe, North America, Latin America, Southeast Asia, Middle East , Oceania and Africa.

Our target is to survive by quality, to develop by innovation, we are willing to strengthen cooperation and exchange idea with all clients, becoming your ideal partner by our superior quality and service, and creating brilliant future together!
